Ergonomic Keyboards

• designed to better fit your shoulders, arms, hands & fingers
• DIY/Maker scene is starting to bring price & effort way down

Ergogen

• Ergogen can help you design a PCB for your keyboard
• https://ergogen.cache.works/
• Ergogen Docs
• Input yaml data, get back out files for

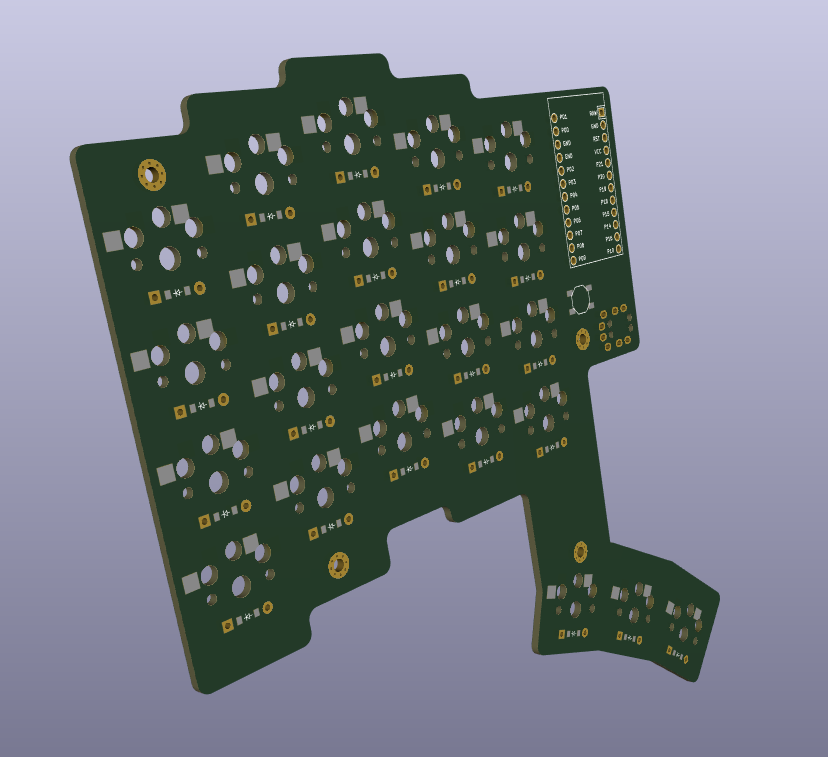

  • Printed Circuit Board
    • Split or unibody
    • Reversible
    • Hot swap switches

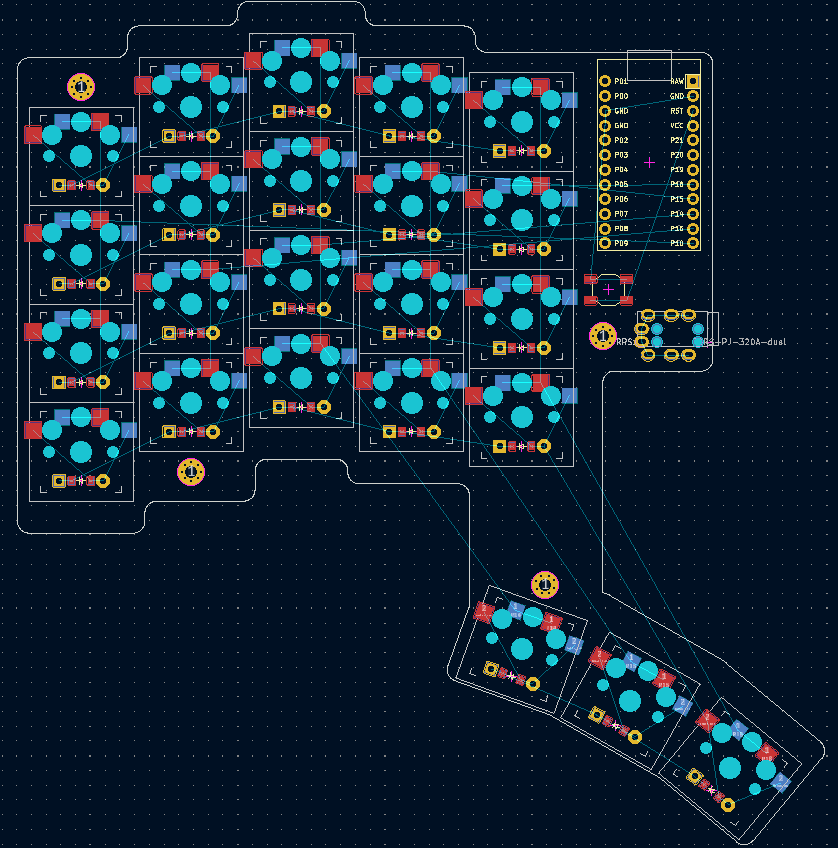

    • KiCAD format
  • 3D printable bottom case

yaml section

 thumb:
      anchor:
        ref: fingers_inner_one
        shift: [0, -40]
        rotate: -10
      columns:
        outer:
          rows.one.rotate: -10
          rows.one.bind: [5,2,0,2]
        home:
          rows.one.rotate: -20
          rows.one.shift: [1, -5.5]
          rows.one.bind: [5,2,0,3.5]
        inner:
          rows.one.rotate: -30
          rows.one.shift: [1, -14]
          rows.one.bind: [4.5,2,0,4]

Demo

Tutorial

• Awesome tutorial at flatfootfox.com/ergogen-introduction/
• Ben Vallack YouTube Videos

The End
